TECHNICS RS-1500 — ONE OF THE MOST ICONIC REEL-TO-REEL TAPE RECORDERS OF THE ANALOG HIGH-END ERA

There are tape recorders that simply make good recordings. There are machines that become part of Hi-Fi history. And then there is the Technics RS-1500 — a machine that, almost half a century later, still looks like a statement of engineering intent.

The RS-1500 appeared in the mid-1970s and became the foundation of the famous Technics RS-1500/1506/1700 family. The concept was ambitious: combine a serious high-precision transport, direct drive, three motors, three speeds and flexible tape-format compatibility in a machine aimed primarily at the demanding home listener.

The RS-1500 remains one of the most desirable reel-to-reel decks of its generation, admired for its combination of sound quality, engineering, usability and unmistakable visual design.

THE ISOLOOP TRANSPORT — THE HEART OF THE RS-1500

The defining engineering feature of the RS-1500 is Technics’ famous Isolated Loop / Isoloop tape transport.

The tape forms a distinctive U-shaped loop around the head block, large capstan and dual pinch rollers. This arrangement helps isolate the section of tape passing across the heads from changes in reel tension. Hence the name — Isolated Loop.

Technics employed three brushless direct-drive motors: one quartz-stabilised capstan motor and two independent reel motors with tension control.

The capstan is governed by a PLL system, and the entire mechanism was designed for extremely stable tape movement and rapid speed lock.

That transport is one of the principal reasons the RS-1500 remains so impressive today. It does not merely look mechanically sophisticated — it genuinely reflects an engineering philosophy centred on precision tape handling.

TECHNICS RS-1500 TECHNICAL SPECIFICATIONS

Unlike the RS-1506, the RS-1500 is primarily a 2-track recording and playback machine, while also offering playback of 4-track stereo tapes.

Track system:
2-track / 2-channel recording, playback and erase
4-track / 2-channel playback

Heads: 4

Motors:
1 × quartz-controlled brushless direct-drive capstan motor
2 × brushless direct-drive reel motors with tension control

Reel capacity: approximately 5” to 10.5”

Tape speeds:
15 ips — 38 cm/s
7½ ips — 19 cm/s
3¾ ips — 9.5 cm/s

Pitch control: ±6%

Wow & Flutter:
15 ips — 0.018% WRMS
7½ ips — 0.03% WRMS
3¾ ips — approximately 0.06% WRMS

Frequency response:
15 ips — 30 Hz–30 kHz
7½ ips — 20 Hz–25 kHz
3¾ ips — 20 Hz–15 kHz

Signal-to-noise ratio:
approximately 60 dB at 15 and 7½ ips
approximately 58 dB at 3¾ ips

Channel separation: greater than 50 dB

Bias frequency: 120 kHz

Equalisation: NAB

Dimensions: approximately 456 × 446 × 258 mm

Weight: around 25 kg

For a domestic tape recorder from the second half of the 1970s, these were extremely serious specifications.

HOW DOES IT SOUND?

The RS-1500 earned its reputation for more than just its beautiful transport.

Owners often describe its sound as powerful, clean, spacious and exceptionally stable in stereo imaging.

On a good 2-track tape at 15 ips, the RS-1500 can be especially convincing.

The sound can be:

full-bodied without becoming heavy,
detailed without becoming aggressive,
dynamic without sounding nervous,
spacious and physically tangible.

Voices, brass, strings and piano gain the natural body and texture that continue to make master-tape playback so attractive.

RS-1500 AND MODERN MASTER TAPES

This is where the RS-1500 becomes particularly interesting today.

Its 2-track playback capability and 15 ips speed make it suitable for many modern audiophile master-tape copies recorded on ¼-inch tape.

In the era of specialist reel-to-reel labels, the ability to reproduce 2-track 38 cm/s material transforms the RS-1500 from merely a collectible vintage machine into a genuinely useful high-end playback source.

That is an important distinction compared with many beautiful domestic quarter-track decks.

IT IS NOT PERFECT

Age is now the most important consideration.

The RS-1500 is approaching 50 years old, so even a cosmetically beautiful example should never automatically be assumed to be technically perfect.

Owners and restorers commonly mention:

— worn or weakened brakes
— issues with the 2/4-track head selector mechanism
— noisy or oxidised switches
— mechanical counter noise
— ageing electrolytic capacitors
— the need to check head wear, tape tension and calibration

A deck that simply powers up is not necessarily a properly serviced deck.

The RS-1500 is also relatively complex to work on, and serious servicing is best entrusted to a technician familiar with the Technics RS-1500 family.

The rule when buying one is simple:

do not buy only the appearance — buy the condition of the transport, heads and electronics.

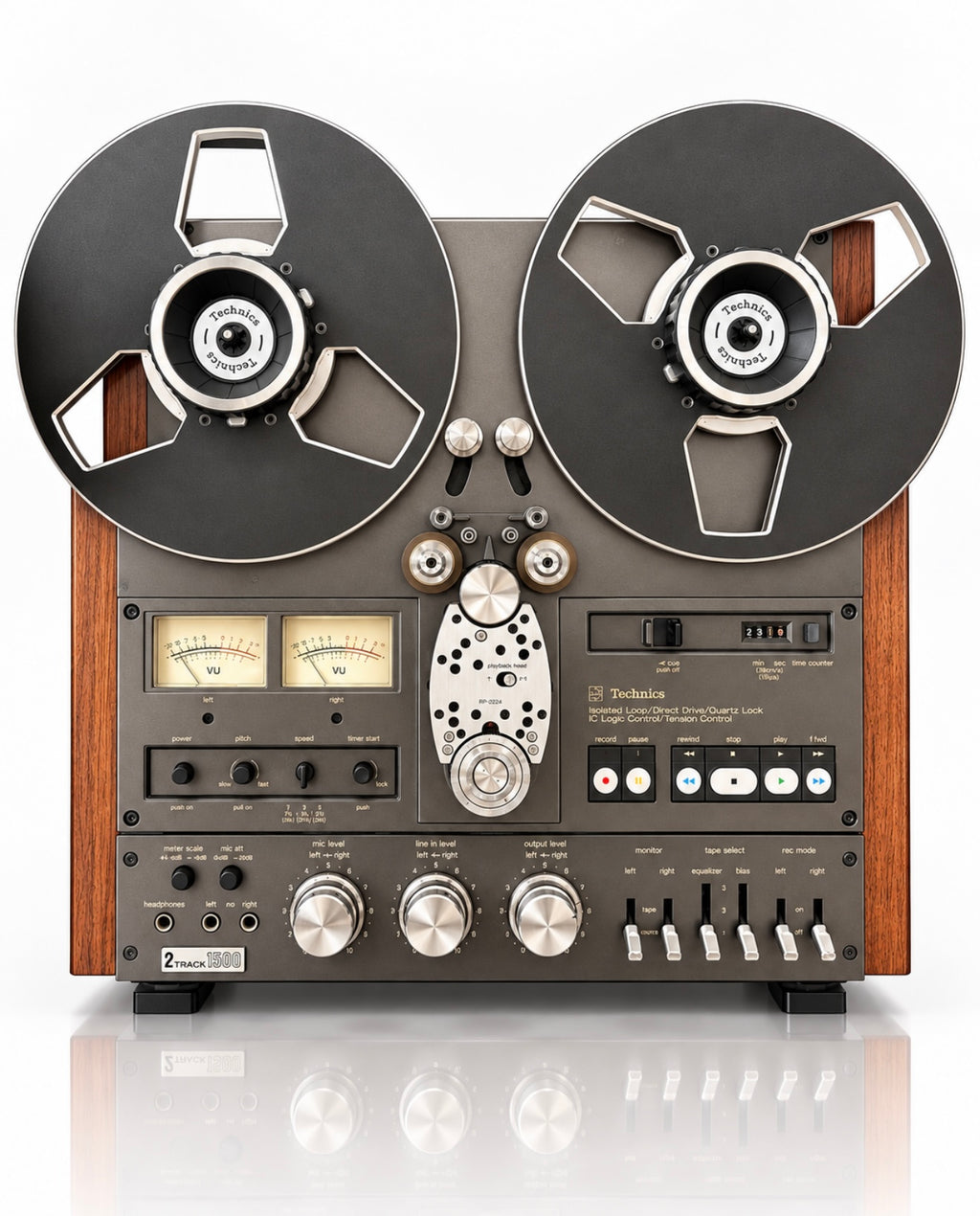

A DESIGN THAT CANNOT BE CONFUSED WITH ANYTHING ELSE

You cannot discuss the RS-1500 without talking about its appearance.

Two huge 10.5-inch reels.
Twin VU meters.
Massive concentric control knobs.
Wooden side panels.
An exposed mechanical tape path.
The distinctive U-shaped tape loop.

It is one of the great examples of 1970s industrial audio design.

The RS-1500 does not look like ordinary consumer electronics.

It looks like a machine built for music.

TECHNICS RS-1500 OR RS-1506?

This is one of the most interesting questions for collectors.

RS-1500:
2-track record/playback

• 4-track playback

RS-1506:
4-track record/playback

• 2-track playback

If your priority is 15 ips two-track master tapes, the RS-1500 is the more logical choice.

If you want to record and work extensively with quarter-track tapes, the RS-1506 may offer greater flexibility.

Both, however, belong to the same exceptional engineering family.

OPENREELTOREEL VERDICT

⭐ Transport: 10/10
⭐ Engineering: 10/10
⭐ Build quality: 9/10
⭐ Sound at 15 ips: 9.5/10
⭐ Versatility: 9/10
⭐ Design: 10/10
⭐ Collector appeal: 10/10

The Technics RS-1500 is not simply a vintage reel-to-reel tape recorder.

It represents an era when Japanese audio engineering was prepared to go extraordinarily far in pursuit of high-performance analog sound.

Three direct-drive motors.
Quartz-locked capstan.
Isoloop transport.
10.5-inch reels.
15 ips.
2-track recording.
4-track playback.
Around 25 kilograms of metal, electronics and engineering ambition.

Today, a fully serviced and correctly calibrated RS-1500 can still do more than compete with modern sources in terms of listening enjoyment.

It offers a completely different way of experiencing music.

The tape moves.
The reels turn.
The VU meters come alive.
And music becomes a physical event.
