TECHNICS RS-1506 — WHEN JAPANESE ENGINEERING TURNED TAPE INTO A PRECISION INSTRUMENT

There are reel-to-reel machines that are remembered because they were popular. There are others remembered because they were beautiful. And then there are machines such as the Technics RS-1506 — recorders whose engineering, versatility and unmistakable visual presence have allowed them to remain genuinely desirable decades after they were built.

Introduced during Technics’ extraordinary late-1970s analogue period, the RS-1506 belongs to the celebrated RS-1500 family and represents one of the company’s most ambitious approaches to domestic open-reel recording. Today it remains a serious collector’s machine, but more importantly, a properly restored RS-1506 can still be a remarkably capable music-making and playback instrument.

THE ENGINEERING: THE ISOLATED-LOOP APPROACH

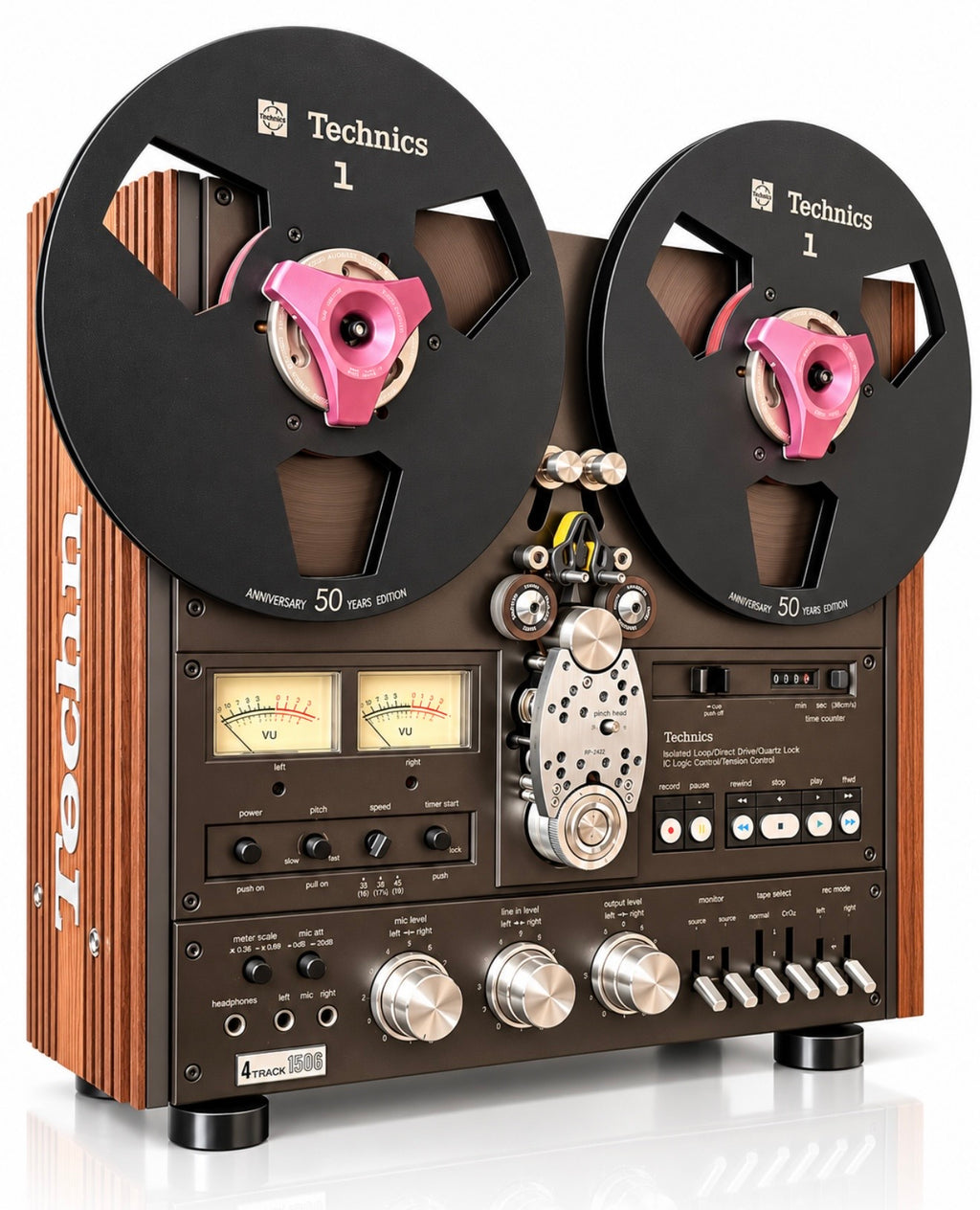

The most visually distinctive element of the RS-1506 is not merely cosmetic. Technics developed an Isolated Loop tape transport, built around a large direct-drive capstan and dual pinch rollers. The idea was to maintain particularly stable tape movement around the head assembly while reducing the influence of reel-tension variations on the critical section of tape passing across the heads.

The capstan is direct drive, and the machine uses three motors in total — one capstan motor and two reel motors. Electronic tension control and logic-controlled braking contribute to the unusually smooth transport operation for which this Technics generation became famous.

That transport remains one of the pleasures of using an RS-1506: thread the tape, press PLAY, and the machine has a purposeful mechanical composure that reminds you just how seriously Technics approached analogue engineering.

THREE SPEEDS — AND EXCEPTIONAL FORMAT FLEXIBILITY

One of the great strengths of the RS-1506 is its versatility.

It operates at:

3¾ ips — 9.5 cm/s
7½ ips — 19 cm/s
15 ips — 38 cm/s

It accommodates reels up to 10.5 inches / 26.5 cm and is principally a ¼-track, two-channel record/playback machine, while also providing ½-track stereo playback capability. This gives the owner access to both quarter-track material and high-quality two-track prerecorded tapes.

That flexibility is particularly meaningful today. A collector may want to enjoy vintage quarter-track prerecorded tapes one evening and a modern 15 ips two-track audiophile master-tape release the next. The RS-1506 is unusually well suited to that kind of mixed collection.

TECHNICAL SPECIFICATIONS

Published specifications for the RS-1506 include:

System: open-reel stereo tape recorder
Track configuration: ¼-track 2-channel record/playback + ½-track 2-channel playback
Motors: 3
Capstan: direct drive
Maximum reel: 10.5 in / 26.5 cm
Speeds: 3¾, 7½ and 15 ips
Heads: 4
Bias frequency: 120 kHz
Channel separation: greater than 50 dB

Published frequency response:

3¾ ips: 20 Hz–15 kHz
7½ ips: 20 Hz–25 kHz
15 ips: 30 Hz–30 kHz

Published wow & flutter figures:

3¾ ips: 0.06% WRMS
7½ ips: 0.03% WRMS
15 ips: an impressive 0.018% WRMS

Dimensions are approximately 456 × 446 × 258 mm, and weight is around 25 kg / 55 lb.

Different databases quote different signal-to-noise figures depending on measurement method and weighting; one period-specification source gives up to 66 dB A-weighted at the two higher speeds.

AND HOW DOES IT SOUND?

This is where specification sheets stop being interesting.

A well-set-up RS-1506 can deliver the qualities that make open-reel tape so compelling: density, ease, physical presence and continuous musical flow.

At 15 ips, good tape can sound exceptionally open. Transients arrive without hardness, sustained instruments retain body, and stereo images can have an almost architectural stability. Bass can be substantial without becoming over-damped, while voices and acoustic instruments possess the textural richness that continues to draw listeners back to analogue master-tape reproduction.

Community feedback broadly supports the RS-1506’s reputation. The Reel-Reel database currently gives it an 8/10 sound-quality rating and 9/10 long-term reliability rating, based on owner submissions.

One long-term owner reported buying his RS-1506 in 1978 and, over decades, needing mainly routine mechanical work such as brake pads, bearings, a counter belt and tension adjustments; he praised its three speeds, two-track playback capability and overall performance.

Another owner described the machine as requiring relatively little maintenance apart from the familiar counter noise, while commenting that although he preferred his ReVox PR99 sonically, the Technics offered greater versatility and striking design.

That is a useful perspective: the RS-1506 does not need to “beat” every Studer, ReVox or professional broadcast deck to deserve admiration. Its appeal is the particular combination of performance + engineering + versatility + design.

WHAT SHOULD A BUYER WATCH FOR?

These machines are now vintage equipment, so condition matters far more than cosmetic shine.

Owner discussions repeatedly mention the importance of checking:

brakes and brake pads,
reel-tension mechanisms,
switches and contacts,
counter mechanism,
pitch/speed control operation,
aged capacitors,
head condition and alignment,
and the overall transport before assuming that a machine described simply as “restored” is truly restored.

A recent owner discussion also provides a useful warning: a deck stored for decades may power up yet still require extensive electrical and mechanical attention. Experienced RS-1506 owners recommend careful inspection and, where needed, professional servicing rather than indiscriminate adjustment of the transport.

That is especially important because a properly serviced RS-1506 and an untouched RS-1506 can be two very different listening experiences.

DESIGN THAT BECAME AN ICON

Then there is the appearance.

Few tape machines combine industrial engineering and visual theatre quite like the RS-1506 family.

The huge exposed reels.
The warm illuminated VU meters.
The substantial aluminium controls.
The dark faceplate.
The beautifully engineered tape path.

It is equipment that makes the process of listening visible.

Streaming encourages us to forget the mechanism behind music. Reel-to-reel does exactly the opposite.

You see the tape moving.
You see the reels turning.
You select the speed.
You thread the machine yourself.

The listener becomes part of the playback process.

And perhaps that is one reason machines such as the RS-1506 have become even more fascinating in the digital age.

THE OPENREELTOREEL VERDICT

⭐ Engineering: 9/10
⭐ Build quality: 9/10
⭐ Format versatility: 10/10
⭐ Visual design: 10/10
⭐ Collector appeal: 10/10
⭐ Analogue experience: Exceptional

The Technics RS-1506 is not simply a beautiful vintage recorder.

It represents a period when major Japanese manufacturers were competing to push consumer analogue engineering remarkably close to professional territory.

Direct drive.
Three motors.
Three speeds.
10.5-inch reels.
¼-track recording.
½-track playback.
15 ips capability.
And that extraordinary Isolated Loop transport.

Nearly half a century later, it still looks purposeful.

More importantly, when correctly restored and partnered with a great recording, it can still sound thoroughly convincing today.
